Spesifikasi R52N

R52N Wireless Minipci 200mW ABGN
Kategori:Discontinued
Kode:R52N
Harga:Rp 750.000,00

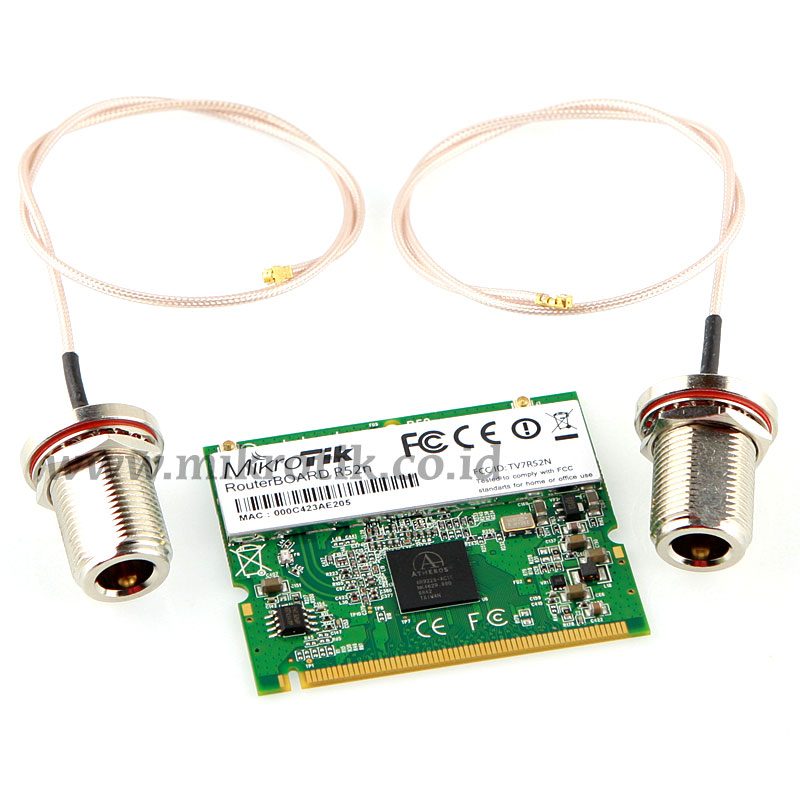

MikroTik presents our new wireless 802.11a+b+g+n miniPCI card for multibandhigh speed applications! It can work either on 2.312 - 2.497 or 4.920 - 6.100GHz range and it includesU.fl-Nfemale pigtail (length 30cm) for external antenna.

Kartu wireless ini hanya dikenali menggunakan Mikrotik RouterOS versi 4++
Spesifikasi teknis:
  • Dual band IEEE 802.11a/b/g/n standard
  • Output Power of up to 23dBm @ b/g/n Band
  • Support for up to 2x2 MIMO with spatial multiplexing
  • Four times the throughput of 802.11a/g
  • Atheros AR9220, chipset
  • High Performance (up to 300Mbps physical data rates and 200Mbps of actual user throughput) with Low Power Consumption
  • 2 X U.FL Antenna Connector
  • Modulations:
    OFDM: BPSK, QPSK, 16 QAM, 64QAM
    DSSS: DBPSK, DQPSK, CCK
  • Operating temperatures: 0ºC to 60ºC
  • Power consumption MAX 2.4W
  • ESD protection agaist +/-10kV ESD discharge on Antenna port
The RouterBOARD R52n miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and downlink. Adding Wireless N to your Wireless device, it provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming.
