Spesifikasi R52H

Kategori	:	Discontinued
Kode	:	R52H
Harga	:	Rp 810.000,00

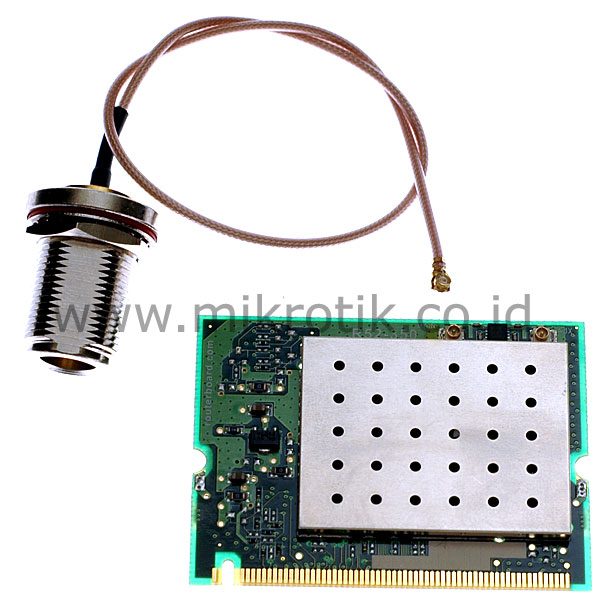

Wireless MiniPCI produksi Mikrotik yang bekerja sesuai dengan standar 802.11a+b+g, untuk aplikasi wirelesss broadband. Bekerja pada frekuensi 2.192-2.539 dan 4.920-6.100GHz  dengan power maksimal 350 mWatt. Sangat sesuai dengan RouterOS Mikrotik. Harga sudah termasuk pigtail ufl to NFemale.

Spesifikasi Teknis:

• Chipset: Atheros AR5414
• Standards: IEEE802.11a, IEEE802.11b, IEEE802.11g
• Media Access: CSMA/CA with ACK architecture 32-bit MAC
• Security: Hardware-based 64/128 bit WEP, TKIP and AES-CCM encryption, WPA, WPA2, 802.1x
• Modulation: 802.11b+g: DSSS, OFDM for data rate >30Mbps, 802.11a: OFDM
• Host Interface: Mini-PCI form factor; Mini-PCI Version 1.0 type 3B suggested only for motherboards that are produced after 2004
• Connectors: Two U.fl connectors
• Wi-Fi: WECA Compliant
• Certifications: FCC, EC
• Powering: 3.3V +/- 10% DC; 800mA max (600mA typ.)
• Frequencies:
  - 802.11b/g 2.192 – 2.507 (5 MHz step); 2.224 – 2.539 (5MHz step)
  - 802.11a 4.920 – 6.100 (5 MHz step)
• Transfer Data Rate:
  - 802.11b:11,5.5,2,1 Mbps, auto-fallback
  - 802.11g(Normal mode):54,48,36,24,18,12,9,6 Mbps, auto-fallback
  - 802.11g(Turbo mode):108,96,72,48,36,24,18,12 Mbps, auto-fallback
  - 802.11a(Normal mode):54,48,36,24,18,12,9,6 Mbps, auto-fallback
  - 802.11a(Turbo mode):108,96,72,48,36,24,18,12 Mbps, auto-fallback
• Output Power / Receive Sensitivity:
  - IEEE 802.11a: 24dBm / -90dBm @ 6Mbps, 19dBm / -70dBm @ 54Mbps
  - IEEE 802.11b: 25dBm / -92dBm @ 1Mbps,25dBm / -87dBm @ 11Mbps
  - IEEE 802.11g: 25dBm / -90dBm @ 6Mbps, 20dBm / -70dBm @ 54Mbps
  * with RouterOS v2.9 and newer, tested to comply with IEEE802.11 BER specs
• Supported OS: MikroTik RouterOS, Windows XP, GNU/Linux
• Operation Temp.: -20°C to 70°C
• Storage Temp.: -65°C to 100°C
• Humidity range: Operating 5% to 95% (non-condensing)
• Dimensions: 6.0cm x 4.5 cm
• Weight: 20 grams

Warning: it is always advised to keep an antenna connected during high power tx to avoid damage to the amplifier circuit.
