Spesifikasi MikroPoynt

MikroPoynt RB411AH (B+G)
Kategori:Discontinued
Kode:MP411AH-24
Harga:Rp 2.245.000,00

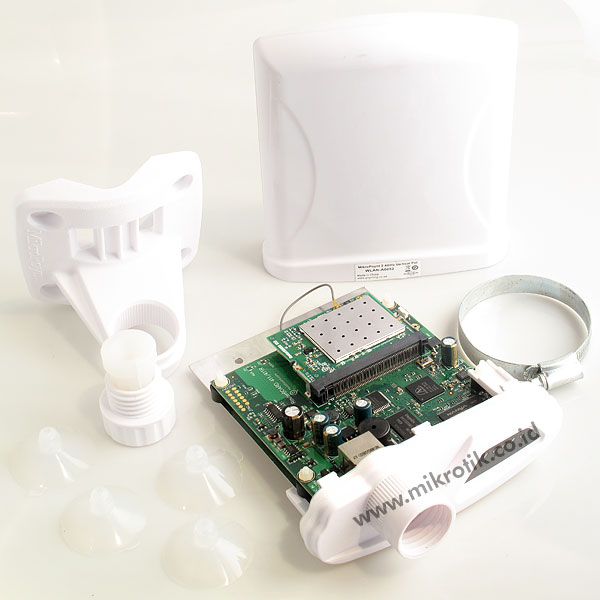

--Discontinued-- RouterBoard 411AH (Lisensi Level 4CF-AP, CPU Atheros AR7161 680MHz) dengan Wireless MiniPCI yang dipadukan dengan embedded antenna MikroPoynt 2,4 GHz 11dbi, menghasilkan unit wireless yang ringkas. Sudah termasuk adaptor 24V dan PoE.


Aplikasi Penggunaan:
  • Indoor Access Point/Hotspot
  • Outdoor (short range) CPE


Spesifikasi RB411AH
Product CodeRB411AH
ArchitectureMIPS-BE
CPUAR7161 680MHz
Current MonitorNo
Main Storage/NAND64MB
RAM64MB
SFP Ports0
LAN Ports1
GigabitNo
Switch ChipNo
MiniPCI1
Integrated WirelessNo
MiniPCIe0
SIM Card SlotsNo
USBNo
Memory CardsNo
Power Jack10-28V
802.3af SupportNo
POE Input10-28V
POE OutputNo
Serial PortDB9/RS232
Voltage MonitorNo
Temperature SensorNo
Dimentions105mm x 105mm
Operating SystemRouterOS
Temperature Range-30C .. +60C
RouterOS LicenseLevel4
Spesifikasi MikroPoynt 2,4GHz :
  • Frequency: 2.4 � 2.5 GHz
  • Gain: 11.6 dBi
  • Gain (Min over the band): 8.5 dBi
  • VSWR: < 2.5:1
  • Feed Power Handling: 10 W
  • E-Plane 3 dB Beamwidth: 44 degrees
  • H-Plane 3 dB Beamwidth: 54 degrees
  • Front to Bank (F/B Ratio): 14 dB
  • Nominal input impedance: 50 ohm
  • Polarisation: Vertical
  • Connector Type: U.fl
  • Dimensions (l x w x d): 234 x 134 x 105 mm
  • Mounting: Wall, window or pole
  • Materials: ABS
  • Wind Loading: 120 km/h
  • Temperature Range: -20 to 70 degrees celcius
  • Water Ingress: Rating IP67
  • Rain Rating (mm/hr): 100 mm/hr
  • RoHs: Yes
